JORDAHL® Double-notch toothed T-bolts

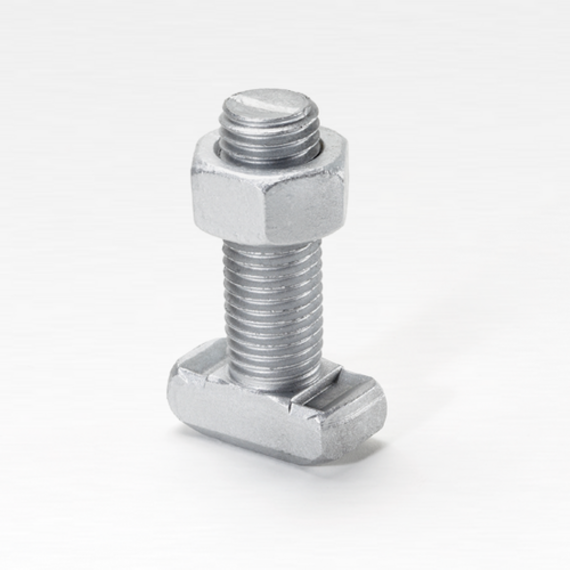

    JORDAHL® double-notch toothed T-bolts are used with hot-rolled smooth JORDAHL® channels. When the T-bolts are tightened, their teeth bite into the channel lips to create a positive, non-slip connection to resist longitudinal loads. It is therefore possible to transmit force with plain hot-rolled JORDAHL® channels in all directions.

    Toothed T-Bolts and Double-Notch Toothed T-Bolts ICC-ES ESR-2854 Range of Toothed T-Bolts
    JXA W 64/44 1) 2)JXA W 53/34 2)JXA W 38/23 2)JXA W 29/20 1) 2)
    T-Bolt Type JXET-Bolt Type JXBT-Bolt Type JXHT-Bolt Type JXD
    Length l  in. (mm)M 20M 24Length l  in. (mm)M 16M 20Length l  in. (mm)M 12M 16Length l  in. (mm)M 10M 12
    2 (50)F4-70F4-702 3/8 (60)8.8 HDG  F4-708.8 HDG1 3/16 (30)8.8 HDG8.8 HDG1 3/16 (30) 8.8 HDG
    2 3/8 (60)8.8 HDG 2 9/16 (65) 8.8 HDG1 1/2 (40)8.8 HDG  F4-708.8 HDG1 1/2 (40)8.8 HDG8.8 HDG  F4-70
    3 (75) 8.8 HDG3 1/4 (80)8.8 HDG  F4-708.8 HDG  F4-702 (50)8.8 HDG8.8 HDG2 (50) 8.8 HDG
    4 (100)8.8 HDG  F4-708.8 HDG  F4-704 (100)8.8 HDG  F4-708.8 HDG  F4-702 3/8 (60)8.8 HDG  F4-708.8 HDG  F4-702 3/8 (60) 8.8 HDG  F4-70
    6 (150)8.8 HDG8.8 HDG6 (150) 8.8 HDG  F4-703 1/4 (80)8.8 HDG  F4-708.8 HDG3 1/4 (80) 8.8 HDG  F4-70
    1) German Technical Approval abZ Z-21.4-1690.  Not covered by ICC-ES.
    2) Matching channel profile(s) for T-bolt type below.    		4 (100)8.8 HDG8.8 HDG4 (100) 8.8 HDG
    5 (125) 8.8 HDG5 (125) 8.8 HDG
    6 (150) 8.8 HDG6 (150) 8.8 HDG
    8 (200) 8.8 HDG
    Range of Double-Notch Toothed T-Bolts
    JTA W 50/30, JTA W50+,  JTA W 53/34 2)W40+, JTA W 40/22 2)
    T-Bolt Type JKBT-Bolt Type JKC
    Length l  in. (mm)M 16M 20Length l  in. (mm)M 16
    1 1/2 (40)8.8 HDG8.8 HDG1 1/2 (40)8.8 HDG
    2 3/8 (60)8.8 HDG8.8 HDG2 3/8 (60)8.8 HDG
    3 1/4 (80)8.8 HDG8.8 HDG3 1/4 (80)8.8 HDG
    4 (100)8.8 HDG
