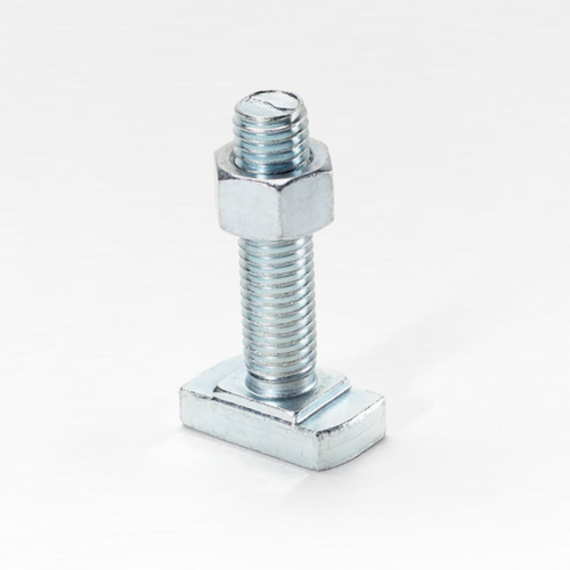

JORDAHL^® Hammer-head T-bolts

Guarantee form-fitting connections, e.g. with the JORDAHL^{^®} Anchor channels JTA K

JORDAHL^® hammer-head T-bolts are used with JORDAHL's light duty JTA and JM range of cold-formed channels. Together with JTA anchor channels they form a vital part of the JORDAHL^® concrete anchoring system evaluated by ICC-ES ESR-2854.

Hook-Head and Hammer-Head T-Bolts ICC-ES ESR-2854 Range of Hook-Head T-Bolts
W 72/48 3)				W 55/42, W 53/34, W 50+, W 50/30 3) W 55/423)							W 40+, W 40/22 3)
T-Bolt Type JA				T-Bolt Type JB				T-Bolt Type JE 2)			T-Bolt Type JC
img				img				img			img
Length l in. (mm)	M20	M24	M27 M30	Length l in. (mm)	M10	M12	M16	Length l in. (mm)	M20	M24²⁾	Length l in. (mm)	M10	M12	M16
50	4.6 HDG 8.8 HDG	4.6 HDG A4-50		30	4.6 ZP A4-50	4.6 HDG 4.6ZP A4-50	4.6ZP A4-50	35	4.6ZP 8.8ZP A4-50		30	4.6ZP A4-50	4.6ZP A4-50	4.6ZP A4-50
60	8.8HDG			40	4.6ZP	4.6HDG 8.8HDG 4.6ZP A4-50 F4-70	4.6HDG 8.8HDG 4.6ZP A4-50	45	4.6HDG 4.6ZP 8.8ZP A4-50		40	4.6HDG 4.6ZP A4-50	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70
75	4.6HDG 8.8HDG	4.6HDG 8.8HDG	4.6HDG	50	4.6ZP	4.6HDG 8.8HDG 4.6ZP A4-50 F4-70	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70	55	4.6HDG 8.8HDG 4.6ZP A4-50 F4-70		50	4.6gv A4-50	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70
100	4.6HDG 8.8HDG 4.6ZP	4.6HDG 8.8HDG A4-50	4.6HDG	60	4.6HDG 8.8HDG 4.6ZP	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70	A4-50	60		4.6ZP	60	4.6HDG 4.6ZP A4-50	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70
125	8.8HDG			65	4.6HDG 8.8HDG 4.6ZP 8.8ZP			65	A4-50		80	4.6HDG 4.6ZP	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70
150	4.6HDG 8.8HDG 4.6ZP	8.8HDG 4.6ZP A4-50 F4-70	4.6ZP¹⁾	80	4.6ZP	4.6HDG 8.8HDG 4.6ZP A4-50	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70	75	4.6HDG 8.8HDG 4.6ZP A4-50 F4-70	4.6HDG 4.6ZP	100	4.6ZP	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50
200	4.6HDG	4.6HDG 8.8HDG	4.6HDG¹⁾	100	4.6ZP	4.6HDG 8.8HDG 4.6ZP A4-50 F4-70	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50	80	F4-70		125		8.8HDG 4.6ZP 8.8ZP	8.8HDG 4.6ZP 8.8ZP
1) Not available as JA M27. 2) JB M24 corresponds to JE M24 3) K 48/26 - M20 8.8 not usable. 4) Head shape is square or drawn diagonally.				125		4.6HDG 4.6ZP 8.8ZP A4-50	8.8HDG 4.6ZP 8.8ZP A4-50	100	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70	4.6HDG	150		8.8HDG 4.6ZP 8.8ZP A4-50	8.8HDG 4.6ZP 8.8ZP A4-50
				150		4.6ZP	4.6HDG 4.6ZP A4-50	125	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50		200		8.8HDG 4.6ZP 8.8ZP	8.8HDG 4.6ZP A4-50
				200		8.8HDG 4.6ZP	4.6ZP A4-50	150	4.6HDG 8.8HDG 4.6ZP 8.8ZP A4-50 F4-70	8.8ZP	250			4.6ZP
				300		4.6ZP	4.6ZP	200	4.6HDG 4.6ZP		300			4.6ZP
								300	4.6ZP

Range of Hammer-Head T-Bolts
K 38/17 ³⁾				K 28/15 ³⁾
T-Bolt Type JH				T-Bolt Type JD
img				img
Length l in. (mm)	M 10	M 12	M 16	Length l in. (mm)	M 6	M 8	M 10	M 12
3/4 (20)	4.6 HDG 4.6 ZP	4.6 ZP	4.6 ZP	1/2 (15)	4.6 ZP	4.6 ZP	4.6 ZP	4.6 ZP
1 (25)		4.6 ZP A4-50 A4-70	A4-50	3/4 (20)	4.6 ZP	4.6 ZP	4.6 ZP
1 3/16 (30)	4.6 HDG 4.6 ZP A4-50 A4-70	4.6 HDG 8.8 HDG 4.6 ZP 8.8 ZP A4-50 A4-70	8.8 HDG 4.6 ZP 8.8 ZP A4-50	1 (25)	4.6 ZP	4.6 ZP	4.6 ZP A4-50 A4-70
1 1/2 (40)	4.6 ZP A4-50 A4-70	4.6 HDG 4.6 ZP A4-50 A4-70	4.6 HDG 4.6 ZP A4-50	1 3/16 (30)	4.6 ZP	4.6 ZP A4-50 A4-70	4.6 HDG 4.6 ZP A4-50 A4-70	4.6 ZP
2 (50)	4.6 HDG 4.6 ZP A4-50 A4-70	4.6 HDG 4.6 ZP A4-50 A4-70	4.6 HDG 4.6 ZP A4-50	1 1/2 (40)	4.6 ZP	4.6 ZP	4.6 HDG 4.6 ZP A4-50 A4-70	4.6 ZP
2 3/8 (60)	4.6 HDG 4.6 ZP A4-50 A4-70	4.6 HDG 4.6 ZP A4-50 A4-70	4.6 HDG 8.8 HDG 4.6 ZP A4-50	2 (50)	4.6 ZP	4.6 ZP	4.6 ZP A4-50 A4-70	4.6 HDG 4.6 ZP
3 1/4 (80)	4.6 HDG 4.6 ZP	4.6 HDG 4.6 ZP A4-50	4.6 HDG 4.6 ZP A4-50	2 3/8 (60)	4.6 ZP	4.6 ZP	4.6 ZP A4-50 A4-70	4.6 HDG
4 (100)	4.6 ZP	4.6 HDG 8.8 HDG 4.6 ZP A4-50 A4-70	4.6 HDG 4.6 ZP A4-50 A4-70	3 1/4 (80)		4.6 HDG 4.6 ZP	4.6 ZP A4-50	4.6 HDG 4.6 ZP
5 (125)	4.6 ZP	4.6 ZP 8.8 ZP	4.6 ZP	4 (100)		4.6 HDG 4.6 ZP	4.6 HDG 4.6 ZP A4-50 A4-70
6 (150)	4.6 ZP	4.6 ZP 8.8 ZP A4-50	4.6 ZP 8.8 ZP A4-50	5 (125)		4.6 ZP	4.6 ZP A4-50
8 (200)		4.6 ZP 8.8 ZP A4-50	A4-50	6 (150)		4.6 ZP	4.6 ZP A4-50
				8 (200)		4.6 ZP

Type	Thread Ø		Length in. (mm)	Strength Grade	Material
T-Bolt Material and Design Hot-dip galvanized steel (HDG), strength grade 4.6 Hot-dip galvanized steel (HDG), strength grade 8.8 Zinc electroplated steel (ZP), strength grade 4.6 Zinc electroplated steel (ZP), strength grade 8.8 Stainless steel A4-50 / 316 Stainless steel A4-70 / 316 Stainless steel F4-70 ( FA-70) / 316
