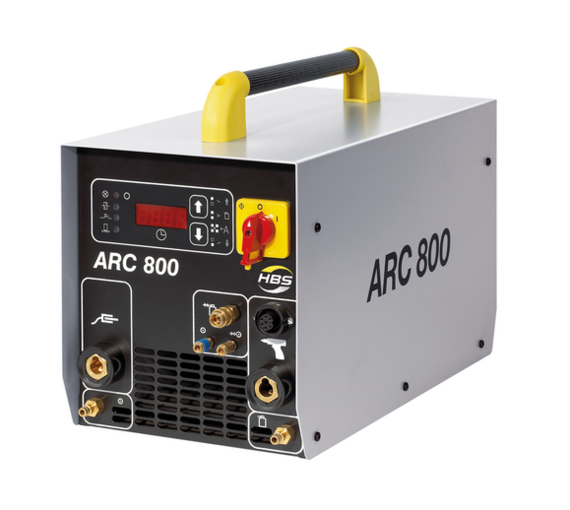

HBS Arc 800
One of our more popular options is our Arc 800 Studwelding system. Like most of our HBS equipment, it too employs a wind tunnel cooling system, which first cools critical components like the main control board and transformer with the fresh air intake. With the capacity to weld up to 1/2" diameter studs, and the option to use a gas purging function, this versatile system can be configured for a multitude of applications. It's robust design, and rapid welding rates mean that this system is ready to withstand the elements of your job site or production facility. Whether you are a custom fabrication shop doing different projects from one day to the next, or a high-volume facility, the Arc 800 studwelding system should be considered as your future investment.
Application:
- Suitable for welding to thicker parent materials (2 mm or more, depending on stud diameter).
- Ideal for applications that require gas purging (short cycle gas arc studwelding).
Features:
- Wind tunnel cooling system for maximum reliability and longevity.
- Simple setup and operation.
Suitable Guns:
- HBS A-12
- HBS CA-08
| Welding Range | 14ga through 1/2" stud diameters (2mm - 12mm) |
|---|---|
| Welding Material | Mild steel, stainless steel and aluminum |
| Welding Rate | Up to 17 studs per minute (depending on application and stud diameter) |
| Welding Current | 800 Amps |
| Primary Power | 575 Volts, 3 Phase, 25 Amps, 50/60 Hz - Option for 230/460 Volt systems |
| Power Source | Transformer/Rectifier |
| Cooling Type | Wind tunnel system with temperature controlled cooling fan |
| IP Code | IP23 |
| Dimensions L x W x H | 18.50" x 9.06" x 8.66" (470 x 230 x 220 mm) without handle |
| Weight | 81.57 lbs (37 kg) |
